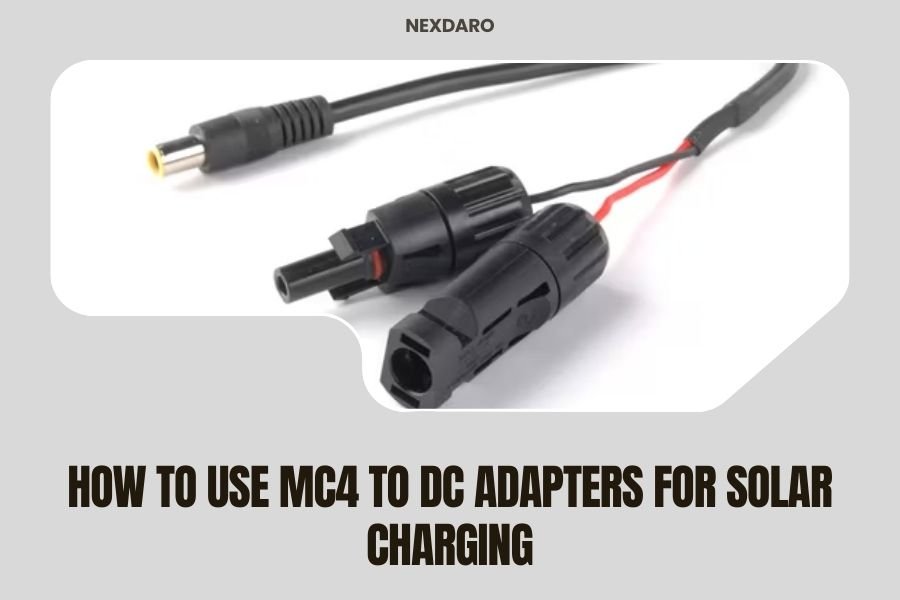

MC4 to DC adapters connect your solar panels with MC4 connectors directly to portable power stations that use standard DC barrel plugs.
These adapters eliminate the need for charge controllers in most cases, making solar charging simpler and more efficient for your outdoor adventures.
What Are MC4 to DC Adapters?
Think of MC4 to DC adapters as translators between two different languages. Your solar panels speak “MC4” while your power station understands “DC barrel plug.”
MC4 connectors are the industry standard for solar panels. They look like small plastic plugs with metal pins inside. DC barrel plugs are those round connectors you see on many electronic devices.
The adapter bridges this gap. One end plugs into your solar panel’s MC4 output. The other end connects to your power station’s DC input port.
Why You Need MC4 to DC Adapters
Most portable power stations come with basic charging cables. But these often don’t match your solar panel’s connectors.
Without the right adapter, you’re stuck. You can’t charge your power station directly from solar panels. That defeats the whole purpose of portable solar power.
I found that many people buy expensive solar setups only to discover they can’t connect everything. The adapter solves this problem for under $20 in most cases.
Direct Connection Benefits
When you use MC4 to DC adapters, you get cleaner power transfer. There are fewer connection points where power can be lost.
You also save space and weight. No need to carry extra charge controllers or conversion equipment.
How to Choose the Right MC4 to DC Adapter
Not all adapters work with every setup. You need to match several things before buying.
Check Your Power Station’s DC Input
Look at your power station’s DC charging port. Measure the diameter if you’re not sure. Common sizes include:
- 5.5mm x 2.1mm (most common)
- 5.5mm x 2.5mm
- 7.4mm x 5.0mm (larger units)
- 8.0mm x 5.5mm
The wrong size won’t fit or won’t make proper contact. Double-check your manual or contact the manufacturer.
Match Voltage Requirements
Your solar panel’s voltage must match your power station’s input range. Most portable power stations accept 12V to 24V input.
Check both devices’ specifications. If your solar panel puts out 18V and your power station accepts 12V-24V, you’re good to go.
If there’s a mismatch, the adapter alone won’t fix it. You’ll need additional voltage regulation equipment.
Consider Current Capacity
The adapter must handle your solar panel’s maximum current output. Most MC4 to DC adapters handle 10-15 amps safely.
If your panel produces more current, look for heavy-duty adapters. These cost more but prevent overheating and connection failures.
Step-by-Step Connection Process
Connecting your solar setup is straightforward once you have the right adapter. Here’s how to do it safely.
Before You Start
Work in shade when possible. Bright sunlight makes panels produce full power, which can spark during connections.
Have your power station turned off. Many units have DC input switches – make sure they’re in the off position.
Making the Connection
Start with the MC4 connections. These require a firm push until you hear a click. The connectors lock together automatically.
Red connects to positive, black connects to negative. Most adapters are clearly marked, but double-check before connecting.
Next, plug the DC barrel connector into your power station. Push it in completely – partial connections cause problems.
Testing Your Setup
Turn on your power station’s DC input. You should see charging indicators light up within a few seconds.
Check the charging rate on your power station’s display. It should show incoming power that matches your solar conditions.
If nothing happens, check all connections. Loose MC4 connections are the most common issue.
Common Connection Problems and Solutions
Even with the right adapter, things can go wrong. Here are the issues I hear about most often.
No Charging at All
First, check if your solar panel is producing power. Use a multimeter if you have one, or try connecting in bright sunlight.
Verify all connections are tight. MC4 connectors should click and lock. DC plugs should be inserted fully.
Some power stations have built-in protection that stops charging if voltage is too high or low. Check your specifications again.
Slow Charging Speed
This often happens in partial shade or cloudy conditions. Solar output drops significantly without direct sunlight.
Check for corrosion or dirt on connectors. Clean contacts can improve power transfer by 10-20%.
Cheap adapters sometimes have resistance that reduces charging speed. Upgrading to better quality adapters can help.
Intermittent Charging
Loose connections cause this problem most often. Wiggle test all connection points to find the culprit.
Temperature changes can affect connection quality too. Connections made in cool morning air might loosen as temperatures rise.
Safety Considerations
Solar power is generally safe, but wrong connections can damage equipment or create fire hazards.
Polarity Matters
Always connect positive to positive and negative to negative. Reversed polarity can damage your power station permanently.
Most MC4 adapters are color-coded, but verify with a multimeter if you’re unsure. Red should be positive, black negative.
Weather Protection
Keep DC connections dry. Water in the barrel plug can cause shorts or corrosion.
MC4 connections are weatherproof when properly locked. But don’t leave them sitting in puddles.
High winds can pull connections apart. Secure your cables and panels properly.
Maximizing Charging Efficiency
Getting power flowing is just the start. Here’s how to get the most from your solar charging setup.
Optimal Panel Positioning
Point your panels directly at the sun for maximum output. Even small angles reduce power significantly.
Adjust panel position every few hours if possible. This can increase daily power collection by 25% or more.
Temperature Effects
Solar panels produce less power when they get hot. Good airflow underneath helps keep them cool.
Morning and late afternoon often give better charging than blazing midday sun. The cooler panel temperatures offset the lower sun angle.
Shade Management
Even small shadows can reduce panel output dramatically. One shaded cell can cut power from the entire panel.
Move your setup away from trees, buildings, or other shade sources. Clear sky in all directions works best.
Adapter Quality and Durability
Not all MC4 to DC adapters are created equal. Here’s what separates good ones from junk.
Wire Gauge and Quality
Thicker wires handle more current and lose less power. Look for 12 AWG or thicker wire in quality adapters.
Good adapters use copper wire, not aluminum. Copper conducts better and lasts longer outdoors.
Connector Build Quality
Cheap MC4 connectors can fail after just a few connection cycles. They crack, corrode, or lose their locking mechanism.
Quality connectors use better plastics and tighter manufacturing tolerances. They’ll last years of regular use.
What to Look For
- Thick, flexible wire insulation
- Solid metal pins in connectors
- Tight-fitting barrel plugs
- Clear polarity markings
- IP67 or better weather rating
Alternative Connection Methods
MC4 to DC adapters aren’t your only option. Sometimes other approaches work better.
Charge Controllers
MPPT charge controllers can boost efficiency by 20-30% in some conditions. They’re worth considering for larger solar arrays.
PWM controllers are cheaper but less efficient. They work fine for simple setups with matched voltages.
Anderson Powerpole Connectors
Some people prefer Anderson connectors for their modularity. You can easily reconfigure connections for different setups.
They’re more expensive initially but offer more flexibility long-term.
Troubleshooting Advanced Issues
Sometimes problems go deeper than loose connections. Here’s how to diagnose complex issues.
Voltage Drop Testing
Measure voltage at the solar panel, then at the power station input. Significant differences point to wire or connection problems.
More than 0.5V drop usually means resistance somewhere in the circuit. Check all connections and wire quality.
Load Testing
Adapters can work fine with no load but fail under actual charging current. Test with your power station actually charging.
Watch for voltage drops or heating when current flows. These indicate undersized wires or poor connections.
Signs of Failing Adapters
- Connectors getting hot during use
- Intermittent charging that gets worse over time
- Visible corrosion or damage to connectors
- Voltage readings that fluctuate wildly
Maintenance and Care
Good maintenance keeps your adapters working reliably for years.
Regular Inspection
Check connectors before each trip. Look for cracks, corrosion, or loose wires.
Bend the wire near connectors gently. Internal wire breaks often happen here first.
Cleaning and Storage
Wipe connectors with a clean, dry cloth after use. Moisture and dirt cause most long-term problems.
Store adapters in a dry place. Coil wires loosely to prevent internal damage.
Cost Considerations
MC4 to DC adapters range from $10 to $50 depending on quality and features.
Budget Options
Basic adapters work fine for occasional use. Just inspect them more frequently for wear.
Expect to replace budget adapters every 1-2 years with regular use.
Premium Choices
High-end adapters cost more but offer better durability and efficiency. They’re worth it for frequent users.
Look for brands with good warranties. This indicates confidence in their build quality.
Conclusion
MC4 to DC adapters are simple but essential tools for solar charging portable power stations. They bridge the gap between professional solar panels and consumer electronics.
Choose adapters that match your power station’s input specifications and your solar panel’s output. Quality matters more than price for long-term reliability.
With the right adapter and proper connections, you’ll have reliable solar charging wherever your adventures take you. The freedom to generate your own power opens up completely new possibilities for extended outdoor trips.
Take time to understand your specific equipment and test your setup at home first. This prevents frustrating discoveries when you’re miles from civilization and need that solar power most.
Can I use MC4 to DC adapters with any solar panel?
Most rigid and flexible solar panels use MC4 connectors, but you must verify voltage compatibility with your power station. Panels outputting more than your station’s maximum input voltage can cause damage.
Do MC4 to DC adapters work in series or parallel panel configurations?
Yes, but series connections increase voltage while parallel connections increase current. Make sure your final output matches your power station’s input requirements before connecting multiple panels.
How do I know if my adapter is handling the current safely?
Check the adapter’s current rating against your solar panel’s maximum output current. During use, adapters should remain cool to the touch. Hot connectors or wires indicate overloading or poor connections.
Can I leave MC4 to DC adapters connected permanently?
While MC4 connectors are weatherproof, DC barrel connections usually aren’t. Permanent outdoor installations should protect the DC connection from moisture. Disconnect during storage to prevent corrosion.
What’s the difference between male and female MC4 connectors on adapters?
Male MC4 connectors have protruding pins and typically carry negative current. Female connectors have recessed sockets and carry positive current. This design prevents accidental reverse polarity connections.
