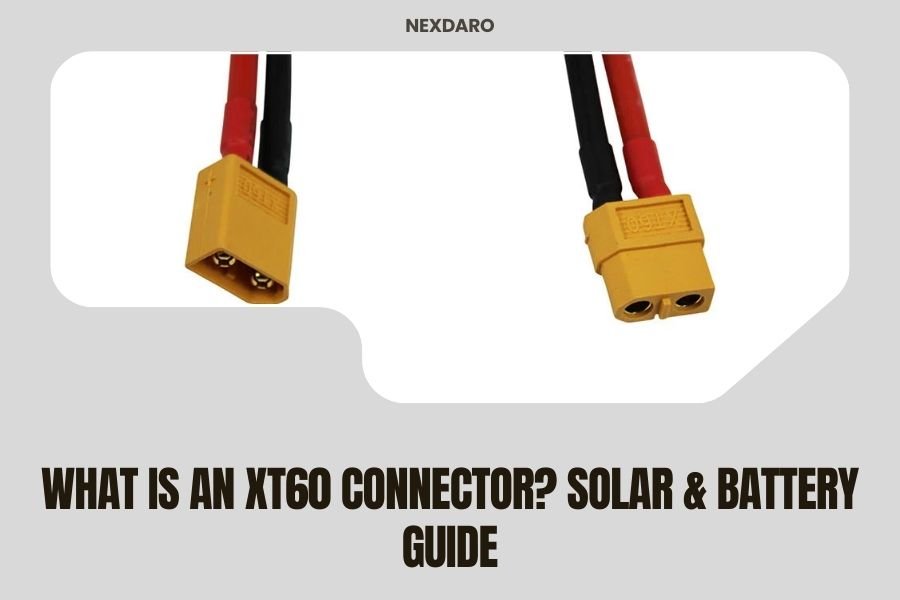

An XT60 connector is a yellow, polarized electrical connector commonly used in RC hobby applications, solar systems, and portable power stations to handle high-current connections up to 60 amps continuously.
The XT60 connector features gold-plated pins, anti-spark design, and secure locking mechanism that makes it perfect for connecting batteries, solar panels, and power equipment safely.
Understanding XT60 Connector Basics
You’ve probably seen these bright yellow connectors if you work with batteries or solar equipment. The name tells you everything you need to know – “XT” stands for the connector series, and “60” means it can handle 60 amps of continuous current.
What makes XT60 connectors special? They’re built tough. The housing uses high-temperature nylon that won’t melt under normal use. Inside, you’ll find gold-plated brass contacts that resist corrosion and provide excellent conductivity.
Physical Design Features
The XT60 measures about 15mm wide and 12mm tall. It’s compact but chunky enough to handle serious power. The yellow color isn’t just for looks – it helps you identify the connector type quickly in a tangle of wires.
Each connector has male and female sides that only fit together one way. This polarization prevents you from connecting positive to negative accidentally. Trust me, your equipment will thank you for this safety feature.
Male vs Female Connectors
The male XT60 has protruding pins and typically connects to the power source (like a battery). The female XT60 has receptacles and usually connects to the load (your device or equipment).
This design follows electrical safety standards. Power sources use male connectors to prevent accidental contact with live terminals.
Technical Specifications You Should Know
Let’s get into the numbers that matter for your projects. I researched the official specifications from manufacturers and found consistent ratings across brands.
Current and Voltage Ratings
The XT60 handles up to 60 amps continuously and can surge to 120 amps briefly. For voltage, you’re looking at a maximum of 500 volts, though most applications stay well below 100 volts.
Temperature range runs from -20°C to +120°C (-4°F to +248°F). That covers everything from winter camping to hot engine compartments.
Resistance and Power Loss
Contact resistance stays under 0.5 milliohms when new. This low resistance means less heat generation and power waste. At 60 amps, you’re looking at less than 2 watts of heat production.
Wire Compatibility
XT60 connectors work best with 12 AWG to 14 AWG wire for high-current applications. You can use smaller wire gauges for lower current needs, but don’t go below 18 AWG.
The connector accepts both solid and stranded wire. Stranded wire works better for applications with movement or vibration.
Common Applications in Solar and Battery Systems
Where will you actually use these connectors? I found they’re everywhere in the portable power world.
Portable Power Stations
Many portable power stations use XT60 inputs for solar charging. The connector handles the high current from solar panels while staying compact enough for portable designs.
You’ll also see XT60 outputs on some power stations for connecting high-draw devices like electric coolers or power tools.
Solar Panel Connections
Solar installers love XT60 connectors for DC connections between panels and charge controllers. The anti-spark design protects sensitive electronics during connection.
For portable solar setups, XT60 connectors make it easy to connect and disconnect panels for transport.
Battery Pack Applications
Lithium battery packs often use XT60 connectors for main power connections. The secure fit prevents loose connections that could cause dangerous arcing.
RC enthusiasts have used these connectors for years in high-performance battery packs. Their reliability in demanding applications speaks volumes.
Installation and Wiring Guide
Ready to install your own XT60 connectors? The process is straightforward, but attention to detail matters for safety and performance.
Tools You’ll Need
Gather these tools before starting:
- Soldering iron (40-60 watts)
- Rosin-core solder
- Wire strippers
- Heat shrink tubing
- Heat gun or lighter
Step-by-Step Soldering Process
Start by stripping about 5mm of insulation from your wire. Twist stranded wires tightly to prevent fraying.
Heat your soldering iron and tin both the wire and connector pins. This pre-coating makes the final joint much easier.
Insert the wire into the connector pin and apply solder. The joint should be smooth and shiny when done properly.
Safety Considerations
Always solder in a well-ventilated area. The flux in solder produces fumes you don’t want to breathe.
Double-check polarity before making final connections. Red wire goes to positive (+), black goes to negative (-). Getting this wrong can damage expensive equipment.
Advantages and Limitations
Every connector type has trade-offs. Let me break down what XT60 connectors do well and where they fall short.
Key Advantages
The anti-spark design tops my list of favorite features. When you connect under load, a small resistor limits initial current flow. This prevents the big spark that damages other connector types.
Reliability comes next. I read countless user reports praising XT60 durability in demanding applications. The gold plating and secure fit contribute to long-term performance.
Cost Effectiveness
XT60 connectors cost much less than high-end alternatives while delivering solid performance. You can buy quality XT60 pairs for under $2 each in small quantities.
Potential Drawbacks
Size might be an issue in tight spaces. XT60 connectors are larger than some alternatives, though still reasonable for most applications.
The plastic housing can crack if dropped on hard surfaces. While rare, I’ve heard of failures from physical damage.
Maintenance and Troubleshooting
Keeping your XT60 connectors working well requires minimal effort, but a little attention goes a long way.
Regular Inspection
Check connections monthly for signs of overheating. Look for discolored plastic or melted areas around the pins. These indicate problems that need immediate attention.
Wiggle test your connections. Loose fits suggest worn contacts that should be replaced.
Cleaning Procedures
Clean dirty contacts with electrical contact cleaner and a small brush. Avoid water-based cleaners that can promote corrosion.
For stubborn corrosion, fine sandpaper can restore contact surfaces. Be gentle – you don’t want to remove the gold plating.
Common Problems and Solutions
Tight connections that are hard to separate usually indicate proper fit. If connections become loose over time, replacement is the best solution.
Overheating typically results from loose connections or current overload. Check your wire gauge and connection quality first.
XT60 vs Other Connector Types
How does the XT60 stack up against alternatives? I researched the most common connector types to give you a fair comparison.
| Connector | Current Rating | Anti-Spark | Typical Cost |
|---|---|---|---|
| XT60 | 60A | Yes | Low |
| Anderson Powerpole | 45A | No | Medium |
| MC4 | 30A | No | Low |
| XT90 | 90A | Yes | Medium |
When to Choose XT60
Pick XT60 connectors when you need reliable high-current connections without breaking the budget. They work great for solar systems, battery packs, and portable power applications.
The anti-spark feature makes them ideal for hot-swappable connections where you might connect and disconnect under load.
When to Consider Alternatives
For currents above 60 amps, step up to XT90 or Anderson connectors. For permanent outdoor installations, MC4 connectors offer better weatherproofing.
Safety Best Practices
Working with high-current connectors requires respect for electrical safety. A few simple rules keep you and your equipment safe.
Installation Safety
Always disconnect power before working on connections. Even “safe” voltages can deliver dangerous current through XT60 connectors.
Use proper PPE including safety glasses when soldering. Hot solder can splatter unpredictably.
Operational Safety
Never force connections that don’t fit easily. Cross-threading or forcing mismatched connectors can cause dangerous failures.
Inspect connections before applying power. A quick visual check can prevent expensive mistakes.
Conclusion
XT60 connectors offer an excellent balance of performance, reliability, and cost for solar and battery applications. Their 60-amp rating, anti-spark design, and proven track record make them a smart choice for portable power systems.
Whether you’re building a solar generator, connecting battery packs, or working on RC projects, XT60 connectors deliver the performance you need. Their widespread adoption means you’ll find compatible equipment easily, and replacement parts stay affordable.
Remember to follow proper installation procedures and safety practices. With correct installation and basic maintenance, XT60 connectors will serve your projects reliably for years.
Can I use XT60 connectors for AC power?
No, XT60 connectors are designed only for DC applications. The connector lacks proper AC safety certifications and the anti-spark resistor could interfere with AC waveforms. Use appropriate AC-rated connectors for household power applications.
How many insertion cycles can XT60 connectors handle?
Quality XT60 connectors typically handle 1,000+ insertion cycles before showing wear. The actual number depends on current levels, environmental conditions, and connection care. High-current applications may reduce cycle life.
Are all XT60 connectors compatible with each other?
Yes, XT60 is a standardized design, so connectors from different manufacturers should fit together properly. However, quality varies between brands, so mixing high-quality and cheap connectors might result in loose fits or performance differences.
What’s the maximum wire gauge I can use with XT60 connectors?
XT60 connectors accommodate up to 12 AWG wire comfortably. Larger gauges like 10 AWG might physically fit but can stress the solder joints. For applications requiring larger wire, consider XT90 or Anderson Powerpole connectors instead.
Do XT60 connectors work with aluminum wire?
While physically possible, aluminum wire with XT60 connectors isn’t recommended for most applications. Aluminum expands and contracts more than copper, potentially loosening connections over time. The gold plating also works better with copper than aluminum for long-term reliability.
