How to Power a Security Camera System Off Grid?

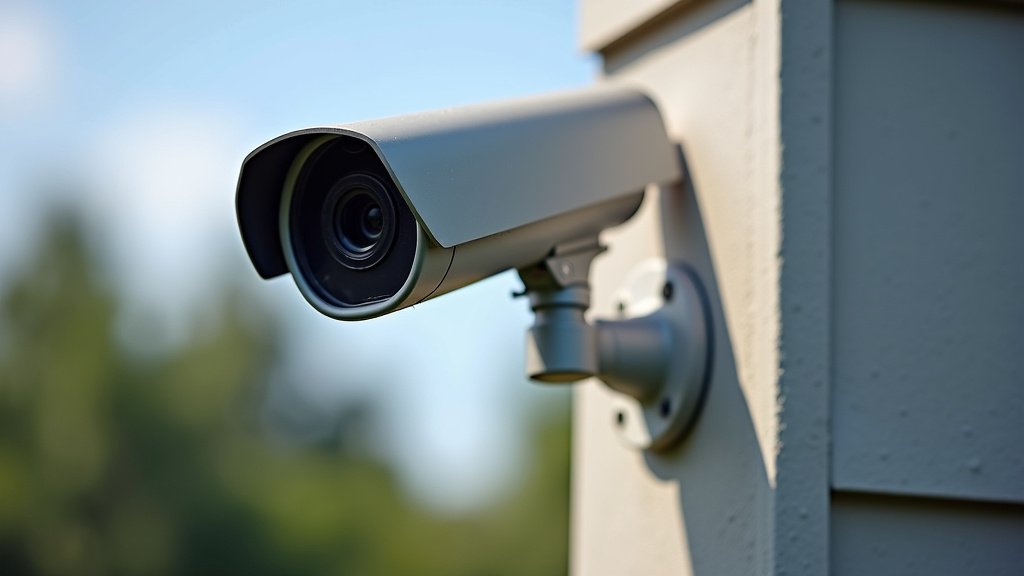

Powering Your Security Cameras Without the Grid

So, you want to set up a security camera system but you’re off the beaten path? Or maybe you’re just tired of high electricity bills. Either way, powering your cameras without a direct connection to the utility grid is totally doable. We found that the secret sauce is a smart combination of solar panels and battery storage. This duo works together to generate power when the sun shines and store it for when it doesn’t. Let’s break down exactly how you can achieve this.

Understanding Your System’s Energy Needs

Before you buy a single solar panel, you need to know how much juice your cameras actually drink. This is the most critical first step. Running a single low-power camera is very different from powering a multi-camera setup with night vision and motion detection.

Calculating Camera Power Consumption

Most security cameras have their power needs listed on the device itself or in their manuals. Look for a rating in watts (W). If it’s listed in volts (V) and amps (A), just multiply them together to get watts (V x A = W).

You’ll also need to consider how long each camera runs per day. Most cameras are on 24/7, so this is usually straightforward. However, some smart cameras only activate when they detect motion, which can save power. We found that checking the manufacturer’s specifications is your best bet here.

Factors Affecting Power Draw

Several things can make your cameras use more power:

• Night Vision: Infrared (IR) LEDs for night vision consume more energy than daytime operation.
• Higher Resolution: Cameras with 4K or higher resolution often need more power to process the data.
• Continuous Recording: If your system records constantly instead of only on motion, it will use significantly more power.
• Wi-Fi Connectivity: Cameras that rely heavily on Wi-Fi, especially in areas with weak signals, can draw more power.
• Heating/Cooling: Some specialized outdoor cameras have built-in heaters or fans. These are power hogs!

Total Daily Watt-Hours

Once you have the wattage for each camera, multiply it by 24 hours to get its daily watt-hour (Wh) consumption. Then, add up the Wh for all your cameras. This gives you your total daily energy requirement To ensure your system is adequately sized, understand how to calculate your total daily energy requirement..

For example, if you have two cameras that each use 5W, that’s 10W total. Over 24 hours, that’s 10W x 24h = 240 Wh per day. This number is your baseline.

Solar Panels: Your Off-Grid Power Generators

Solar panels convert sunlight into electricity. When choosing panels, you’re looking for enough wattage to cover your daily energy needs, plus a little extra for less-than-ideal conditions. We found that oversizing your solar array slightly is a good idea.

Types of Solar Panels

The most common types for DIY setups are:

• Monocrystalline: These are generally more efficient and perform better in low light but are often more expensive. They have a uniform dark color.
• Polycrystalline: These are usually less expensive and slightly less efficient. They have a blue, speckled appearance.

For most off-grid security camera systems, either type will work. Focus on total wattage and physical size. You’ll need enough sun exposure to make them effective.

Sizing Your Solar Array

This is where you combine your daily energy needs with the average sunlight in your area. We found that a good rule of thumb is to calculate your daily Wh requirement and then divide by the average peak sun hours per day for your location. Peak sun hours are not the same as daylight hours; they represent the equivalent hours of full, direct sunlight.

For instance, if your system needs 240 Wh per day and your location gets an average of 4 peak sun hours, you’d ideally want a solar array that can produce at least 240 Wh / 4 h = 60W. However, this doesn’t account for inefficiencies or cloudy days. Many experts suggest adding a buffer of 25-50% to this number. So, for our example, a 75W to 100W solar panel might be a better choice. This gives you some breathing room.

Mounting and Orientation

Getting the most out of your solar panels means placing them correctly. They should face the sun for the longest period possible. In the Northern Hemisphere, this generally means facing south. In the Southern Hemisphere, face north. You’ll also want to tilt them at an angle that optimizes sunlight capture throughout the year. Research the ideal tilt angle for your latitude.

Clear skies are best, so avoid placing panels where they’ll be shaded by trees or buildings. Remember that even a little shade can drastically reduce a panel’s output. We found that regular cleaning of the panels can also improve their performance.

Battery Storage: Keeping the Lights On

Solar panels only work when the sun is out. An off-grid solar power station can store that generated power so your cameras can run at night or during cloudy spells. Think of them as your system’s energy reserve.

Types of Batteries

Several battery chemistries are suitable for off-grid solar systems:

• Lead-Acid (AGM/Gel): These are the traditional, more affordable option. They require careful maintenance, can be heavy, and have a shorter lifespan than other types. They’re sensitive to deep discharges.
• Lithium-ion (LiFePO4): These are lighter, have a longer lifespan, and can be discharged more deeply without damage. They are more expensive upfront but often offer a better long-term value. Many experts recommend LiFePO4 for reliability.

For most off-grid security camera setups, LiFePO4 batteries are often the preferred choice due to their durability and performance. However, lead-acid can be a budget-friendly starting point if managed carefully.

Sizing Your Battery Bank

This calculation is based on how many days you want your system to run without any solar input (called “days of autonomy”). For critical security systems, having 2-3 days of autonomy is often recommended. You also need to consider the battery’s Depth of Discharge (DoD).

DoD tells you how much of the battery’s capacity you can use before it’s considered “empty.” For lead-acid batteries, staying above 50% DoD is crucial for longevity. LiFePO4 batteries can often handle 80-90% DoD. We found that factoring in DoD is key to accurate battery sizing.

To calculate your required battery capacity in watt-hours (Wh):

(Total Daily Wh x Days of Autonomy) / Max DoD (%)

For example, if your system needs 240 Wh daily, you want 2 days of autonomy, and you’re using LiFePO4 batteries with 90% DoD: (240 Wh x 2 days) / 0.90 = 533 Wh. This is the usable capacity you need. To find the total capacity, you might need a battery rated for 600-700 Wh, depending on the specific battery’s voltage.

Battery Management System (BMS)

If you choose lithium-ion batteries, they almost always come with a built-in Battery Management System (BMS). The BMS is crucial; it protects the battery from overcharging, over-discharging, and extreme temperatures. It ensures the battery operates safely and efficiently. We found that a good BMS is non-negotiable for lithium batteries.

Charge Controllers: The Brains of the Operation

A charge controller sits between your solar panels and your batteries. Its main job is to regulate the voltage and current from the panels, ensuring your batteries are charged safely and efficiently without being overcharged or damaged. Think of it as the traffic cop for your power.

Types of Charge Controllers

• PWM (Pulse Width Modulation): These are simpler and less expensive. They work best when the solar panel’s voltage closely matches the battery voltage.
• MPPT (Maximum Power Point Tracking): These are more advanced and efficient, especially in varying light conditions or when panel voltage is much higher than battery voltage. They can significantly increase the power harvested from your panels, sometimes by up to 30%.

For most off-grid systems, especially those with larger solar arrays or variable weather, an MPPT charge controller is highly recommended. We found that the increased efficiency often justifies the higher cost.

Sizing Your Charge Controller

The charge controller needs to be rated for the maximum current (amps) your solar panels can produce and the voltage of your battery bank. Check the specifications of your solar panels for their maximum power current (Imp) and short-circuit current (Isc). You’ll also need to know your battery bank’s nominal voltage (e.g., 12V, 24V).

Always select a controller with a rating slightly higher than your panels’ maximum output current to ensure safety and longevity. For example, if your panels produce a max of 8 amps, a 10-amp or 15-amp controller would be appropriate.

Putting It All Together: System Components Checklist

To make sure you have everything you need, here’s a quick checklist for your off-grid security camera power system:

• Security Cameras (low power models are best!)
• Solar Panels (sized to meet daily energy needs + buffer)
• Deep Cycle Battery/Batteries (sized for autonomy days and DoD)
• Charge Controller (MPPT recommended, sized for panel output and battery voltage)
• Mounting Hardware (for panels, secure and adjustable if possible)
• Wiring & Connectors (UV-resistant, correctly gauged, and waterproof where needed)
• Enclosure for Batteries/Controller (weatherproof, ventilated)

We found that planning your wiring carefully is essential. Using the correct gauge wire minimizes power loss over distance. Always protect your electronics from the elements.

Considering Your Environment and Installation

Where you install your system matters greatly. You need consistent sunlight for your panels and a secure, dry location for your batteries and charge controller. We found that robust weatherproofing is a must for reliability.

Location, Location, Location

Sunlight is king. Scout your location for the best unobstructed sun exposure throughout the day. South-facing (in the Northern Hemisphere) is generally ideal. Think about seasonal changes too; the sun’s path shifts.

For battery and controller enclosures, consider security and accessibility. You need to be able to get to them for maintenance but also keep them safe from tampering or curious critters. A locked, weatherproof box or shed is often a good idea.

Weatherproofing and Protection

Outdoor electronics need protection. Ensure all connections are watertight. Your battery enclosure should be ventilated to prevent heat buildup, especially in warmer climates, but also insulated if you experience freezing temperatures.

Many experts also recommend using surge protectors to safeguard your valuable electronics from power spikes. This is especially true if you live in an area prone to thunderstorms. We found that taking these protective measures can prevent costly repairs.

Maintenance and Monitoring

Off-grid systems require some upkeep. Regularly check your solar panels for dirt or debris. Monitor your battery levels and health if your system allows for it. Many modern charge controllers have displays or apps that let you see your system’s performance.

While these systems are designed to be low-maintenance, a quick visual inspection every month or so can catch potential problems early. It’s about staying ahead of issues rather than reacting to them.
